Kev qhia tshwj xeeb |
Khoom npe |
140kW CCS1 EV them nyiaj rau them hluav taws xob tsheb ntawm txoj kev |
|
Ac tswv yim Chaw ua uas tsis tau haus |
Cov tswv yim rated |
304 ~ 456VAC, rated 380vac; 3 theem + nruab nrab + pe; 45-65HZ |
|
DC Tso Tawm Chaw ua uas tsis tau haus |
Kev Tso Tawm Rated |
140kW / 50-1000V DC / 200a |
|
Outpution Txuas |
CS2 / CCS1 / Chademo / GBT yeem nrog 5m cable |
|
|
Kev sib txuas lus |
Charger vs backend |
Ethernet / WiFi / 4G Kev Sib Txuas Lus |
|
Sib Tham Raws Cai |
OCPP1.6 / 2.0 |
Raws li cov neeg tau txais kev pab ntau ntxiv xav tias yuav cov tsheb hluav taws xob, lub sijhawm them tseem muaj qee qhov kev txiav txim siab hauv lawv qhov kev txiav txim siab- ua cov txheej txheem. Tam sim no, txoj kev ceev tshaj plaws los them ib qho ev yog los ntawm high- Power ncaj qha tam sim no (DC) kev them nyiaj ceev.
Qhov sib txawv ntawm AC thiab DC Chargers
AC (hloov pauv tam sim no), uas suav nrog qib 1 thiab qib 2, muab cov hluav taws xob hnyav los ntawm cov phiaj xwm kev sib tw, zoo li dab tsi siv hauv tsev. Hauv North America, AC them nyob rau hauv SAE J1772 tus qauv, xa tawm ntawm 12234. Thaum siv ib lub zog rau hauv DC kom them lub tsheb roj teeb.
Ntawm qhov tod tes, ** DC cov ntaub ntawv them nyiaj ceev ceev ** ** feem ntau yog siv ntawm cov chaw them nyiaj pej xeem. Cov chaw nres tsheb no hloov AC lub zog los ntawm daim phiaj los rau hauv DC ua ntej xa nws ncaj qha rau lub roj teeb ncaj qha, dhau kev xav tau ntawm kev hloov dua siab tshiab. Hauv qab ntawm J1772 tus qauv, DC Charging muaj ob theem: 1 muaj cov nqi them rau 80a, feem ntau hu ua qib 3) muab cov nqi nce mus txog 500a.

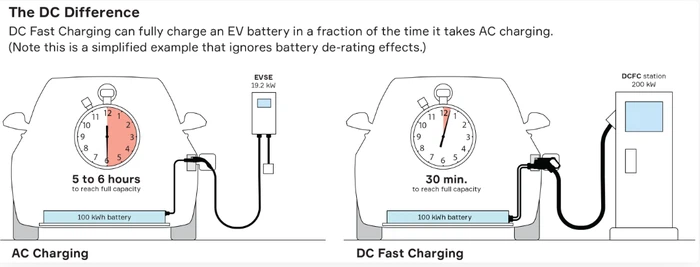

Cov lus tseem ceeb ntawm cov lus dag hauv lub sijhawm them nyiaj. AC theem 1 them, ntawm 12a thiab 120VAC, nyob ib ncig ntawm 1.4 kW ntawm lub zog, thaum AC Theem 2, ntawm 80a thiab 240v, muaj txog 19.2 kW. Txawm tias ntawm nws siab tshaj plaws, AC them nqi yuav siv cov kwv yees tsib mus rau 6 teev mus rau lub luag haujlwm 100 kWh roj teeb. Hauv kev sib piv, DC ceev them nqi ntawm 500A thiab 400vdc tuaj yeem them lub roj teeb qub nyob rau ntawm 30 feeb. Lub sijhawm them yuav tsum tau txo mus ntxiv nrog kev nce qib hauv roj teeb thev naus laus zis, kev saws ntawm 800v tshuab, thiab kev txhim kho hauv kev them cov cuab yeej cuab tam.
