Basic Qhia

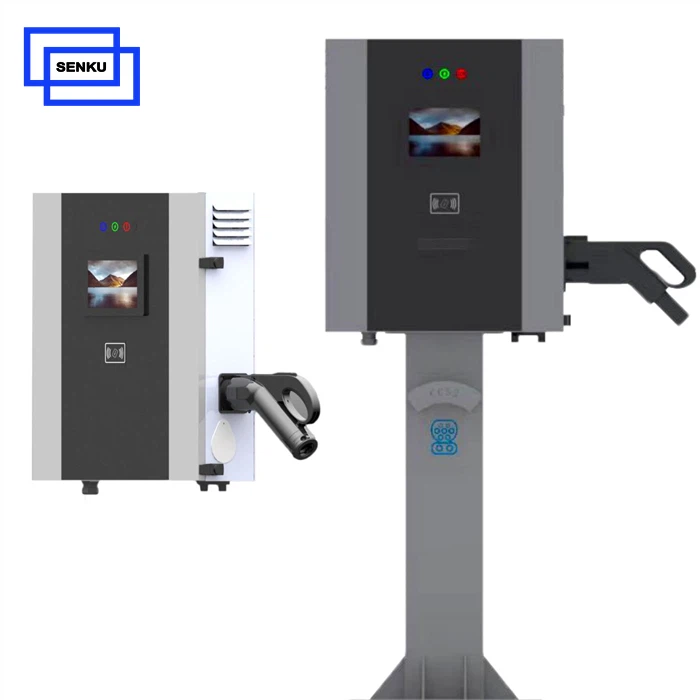

Nrog rau lub qhov muag mus rau lub ntiaj teb sib txawv ntawm kev tiv thaiv ib puag ncig thiab txo cov pa roj carbon, lub neej yav tom ntej ntawm kev thauj mus los yog hluav taws xob tsheb (EV). Qhov no 40KW Qib 3 PublicHluav taws xob tsheb them chaw nres tshebyog ib tug txhim khu kev qha thiab high-tech ev charger rau hluav taws xob tsheb. Me lub cev tsim txuag qhov chaw nruab thiab nqi.
Khoom nta
- Kev them nyiaj yug OCPP 1.6 raws tu qauv; Nrog lub peev xwm tswj hwm lub zog ntse, koj tuaj yeem ua haujlwm ntau lub chaw nres tsheb ntawm tus nqi qis.
- Multi-language touchscreen, intuitive xwm txheej qhia teeb ua kom them nyiaj yooj yim rau txhua tus.
- Twin cables, ib txhij them nyiaj yug.
- Compact lub cev thiab me me installation ko taw tsim, yooj yim rau thauj, nruab, thiab tswj
- Sab nraum zoov IP 55 tsim, txhim khu kev qha hauv txhua qhov xwm txheej.
Daim ntawv thov:
40KW Theem 3 PublicHluav taws xob tsheb them chaw nres tshebmuab cov kev daws teeb meem EV hloov pauv rau txhua lub lag luam, xws li: Chaw Ua Haujlwm, Khw Muag Khoom & tos txais qhua, chaw nres tsheb ua lag luam, them cov neeg ua haujlwm network thiab Fleets ... thiab lwm yam
Hauv khw muag khoom thiab chaw tos txais qhua, 40KWChaw nres tsheb them nqimuab cov kev pabcuam tseem ceeb uas tuaj yeem nyiam thiab khaws cov neeg siv khoom uas tsav tsheb fais fab.
Rau cov chaw ua haujlwm, txhim kho 40KW EV Charger tso cai rau cov tuam txhab los txhawb lawv cov neeg ua haujlwm hloov mus rau lub tsheb fais fab, txhawb kev ruaj khov thiab txo cov pa roj carbon hneev taw ntawm kev mus ncig txhua hnub.
Hauv kev lag luam tsheb, tshwj xeeb tshaj yog nyob rau hauv cov chaw muag khoom, 40KW Charger yog qhov tseem ceeb rau kev tswj hwm thiab nthuav tawm cov qauv tsheb hluav taws xob. Nws xyuas kom meej tias cov tsheb yeej ib txwm npaj rau kev sim tsav thiab ua qauv qhia, muab kev paub zoo rau cov neeg yuav khoom.
Kev tswj Fleet yog lwm qhov chaw tseem ceeb uas 40KW Theem 3 PublicHluav taws xob tsheb them chaw nres tshebua pov thawj invaluable. Txawm hais tias yog rau kev thauj mus los rau pej xeem, kev pabcuam xa khoom, lossis cov tuam txhab thauj khoom, lub charger no muab lub zog xav tau los ua kom lub tsheb fais fab ua haujlwm txhua hnub.
Cim npe nrov: 40kw level 3 public electric tsheb phev combo ccs2 chademo ev charging station, 40kw level 3 public electric tsheb phev combo ccs2 chademo ev charge station
|
Kev ntsuas hluav taws xob |
Rated Input Voltage |
400V AC ± 10%; 3-phase + PE + N |
|
Ntau zaus |
50Hz - 60Hz |
|
|
Hom Connector |
CONFIGURATION 1: 2 * CCS2 |
|
|
MAX tso zis voltage |
CCS2: 200-750V DC; CHADEMO: 200-500V DC |
|
|
MAX tso zis tam sim no |
100A MAX |
|
|
MAX tso zis zog |
40 KW MAX |
|
|
Tso zis Efficiency |
>95% (Rated input thiab tso zis) |
|
|
HMI |
Txoj kev them nqi |
Mode4 / Level3 fais fab tsheb them (Iec 61851) |
|
Case Material |
Kev tsim kho hlau ruaj khov |
|
|
Kev xaiv txoj kev them nyiaj |
RFID daim npav / Xov tooj App |
|
|
Thaum muaj xwm ceev nres khawm |
Yog, liab khawm |
|
|
LED / Screen |
7 nti kov npo + LED teeb |
|
|
Zog ntsuas |
Yog lawm |
|
|
Kev them nyiaj yug interface |
1 los yog 2 * DC tso zis (5M them cable ntev lossis customized) |
|
|
Sib txuas lus |
Ocpp Version |
OCPP 1.6 raws tu qauv (Jason) |
|
Internet |
Ethernet / 3G / 4G rau kev xaiv |
|
|
Kev tiv thaiv hluav taws xob |
Kev tiv thaiv |
OverCurrent, Tshaj / Hauv Volatge, luv Circuit Court, Rov qab Polarity, OverTemperature ... thiab lwm yam |
|
Environmental Rating |
IP tiv thaiv qib |
IP55 / IK10; Sab hauv lossis sab nraum zoov; av mounted |
|
Ua hauj lwm Teem |
Ua haujlwm kub: -30 ~ 55 degree; Cia kub: -40 ~ 70 degree; |
|
|
Ua hauj lwm av noo / cwj pwm |
5% mus rau 95% tsis muaj condensation;<2000 Metres |
|
|
Ua raws |
Ua raws li |
EN 61851-1:2011, EN 61851-23:2014, IEC61851-1:2011; |
