Cov ntaub ntawv yooj yim

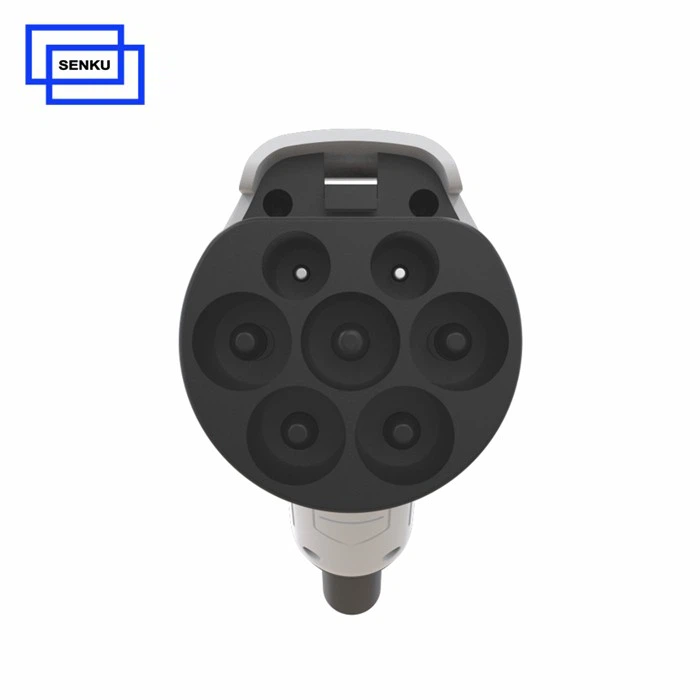

Tus qauv GBTAc Ev Charger Plugyog AC charging phom uas ua raws li Suav teb chaws tus qauv GB/T 20234; Cov phom them nrog xya qhov tsim, zoo ib yam li European qauv hom 2 them phom, tab sis tsis zoo ib yam;
Qhov noAc Ev Charger Gb/T Plugtuaj yeem siv los tsim GBT tus qauv chargers rau them lub tsheb nruab nrog GBT charging inlet sockets; Cov phom them nyiaj no muaj nyob rau hauv 16A, 32A, thiab 63A kev xaiv, txhawb nqa ib-theem thiab peb-theem them;
Khoom siv:Tsev Tsheb Charger 32A Gbt Charging Cable
Rated hwj chim: 32A 240V AC 7KW
Xav paub ntau ntxiv txog Lub Tsev Tsheb Charger 32A Gbt Charging Cable, thov hu rau pebpab neeg muag khoom.
Peb tsom mus rau kev tshawb fawb thiab tsim cov khoom siv hluav taws xob tsheb them nyiaj. Peb cov khoom tseem ceeb suav nrog cov khoom siv hluav taws xob hluav taws xob sib txuas (cov ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws ntsaws
Peb cov EV charging connectors muaj cov qauv ruaj khov thiab ruaj khov uas tuaj yeem hloov mus rau ntau yam ib puag ncig. Nws tau txais daim ntawv pov thawj TUV thiab UL kom muaj kev nyab xeeb ntawm cov txheej txheem them nyiaj.

Dab tsi yog Qhov Nplaim retardance ntawm Lub Tsev Tsheb Charger 32A Gbt Charging Cable?
Teb: UL{{0}}V0
Xav paub ntau ntxiv txog UL{{0}}V0:
Txhais: nplaim taws retardancy piav qhia txog qhov ua tau zoo ntawm cov khoom tiv thaiv kev kub nyhiab, txawm hais tias nws tsis txhais tau hais tias cov khoom muaj kev tiv thaiv tag nrho rau ignition. Kev ntsuas hluav taws xob hluav taws xob qhia tau zoo npaum li cas cov khoom siv lossis cov khoom siv tuaj yeem ncua kev loj hlob ntawm cov nplaim taws thaum nws tau kho. Qhov kev faib tawm no suav nrog ntau qib rau cov yas, uas muaj ntau ntxiv los ntawm HB mus rau V-2, V-1, thiab thaum kawg V-0.
GBT charging cable Nplaim hluav taws xob UL {{0}}V0 Test program:
Tag nrho ntawm 10 tus qauv (2 teeb) raug kuaj rau txhua qhov tuab. Tsib cov qauv ntawm txhua qhov tuab tau muab tso rau ntawm 23 degree thiab 50% RH rau 48 teev ua ntej kuaj. Tsib qauv ntawm txhua qhov tuab tau muab tso rau ntawm 70 degree rau 7 hnub ua ntej kev sim.
Muab cov qauv coj mus rau qhov ntev axis thiab nruab nws. Thaum txhim kho, tso qhov qis kawg ntawm tus qauv ntawm qhov deb ntawm 3/8 los ntawm sab saum toj ntawm lub combustion raj. Muab lub nplaim xiav nrog qhov siab ntawm 3/4 ntawm qhov nruab nrab ntawm qhov qis kawg ntawm cov qauv, hlawv rau 10 vib nas this, thiab tom qab ntawd tshem tawm cov nplaim taws (tsawg kawg 152 hli ntawm cov qauv); Yog tias tus qauv drips ib los ntawm ib qho, cov kua drips mus rau ib txheej ntawm cov paj rwb uas tsis tau kho hauv qab cov qauv, uas tau muab tso rau 12 ntiv tes hauv qab cov qauv.
Qib yuav tsum tau: 94V-0
A: Tsis muaj cov qauv uas muaj nplaim taws kub hnyiab tau ntau tshaj 10 vib nas this (nrog lub sijhawm hlawv) tom qab cov nplaim hluav taws raug tshem tawm.
B: Rau txhua pawg ntawm 5 cov qauv, tag nrho lub sijhawm hlawv nrog nplaim taws tom qab 10 ignitions yuav tsum tsis pub tshaj 50 vib nas this
C: Tsis muaj cov qauv hlawv tag nrho txoj kev mus rau qhov khoom siv (xws li nplaim taws thiab liab)
D: Yog tsis muaj cov qauv, qhov kub thiab yaj cov hlwv ignited paj rwb ntawm 12 ntiv hauv qab.
E: Tsis muaj cov qauv, thiab tom qab qhov thib ob tshem tawm ntawm cov nplaim taws, lawv txuas ntxiv hlawv liab rau ntau tshaj 30 vib nas this (lub sij hawm tsis muaj nplaim taws).
Cim npe nrov: Tsev tsheb charger 32a gbt them cable, tsev tsheb charger 32a gbt them cable lwm tus neeg, manufacturers, hoobkas
|
Hluav taws xob Performance. |
||
|
Rated tam sim no |
16A / 32A |
|
|
Kev ua haujlwm voltage |
120VAC lossis 2400VAC yeem |
|
|
Neeg kho tshuab lub neej |
tsis muaj ntsaws ntsaws rau hauv / ntsaws tawm> 10000 zaug |
|
|
Coupled insertion quab yuam |
<100N |
|
|
Kev cuam tshuam ntawm lub zog sab nraud |
tuaj yeem them taus 1m poob kev sim thiab 2T lub tsheb khiav dhau lub siab |
|
|
Case Material |
Thermoplastic, nplaim retardant qib UL 94-0 |
|
|
Pin |
Cooper alloy, Sliver plated |
|
|
Kev ua haujlwm Temp. |
-30 degree ~ + 50 degree |
|
|
IP tiv thaiv chav kawm |
IP55 (kev ua haujlwm) |
|
|
Qauv |
Cable Specific |
Cable Ntev |
|
16A / 250VAC (Txiv neej lossis poj niam) |
3 * 2.5 mm² + 2 * 0.5 mm² |
Tsis muaj kab |
|
32A / 250VAC (Txiv neej lossis poj niam) |
3 * 6 mm² + 2 * 0.5 mm² |
|
