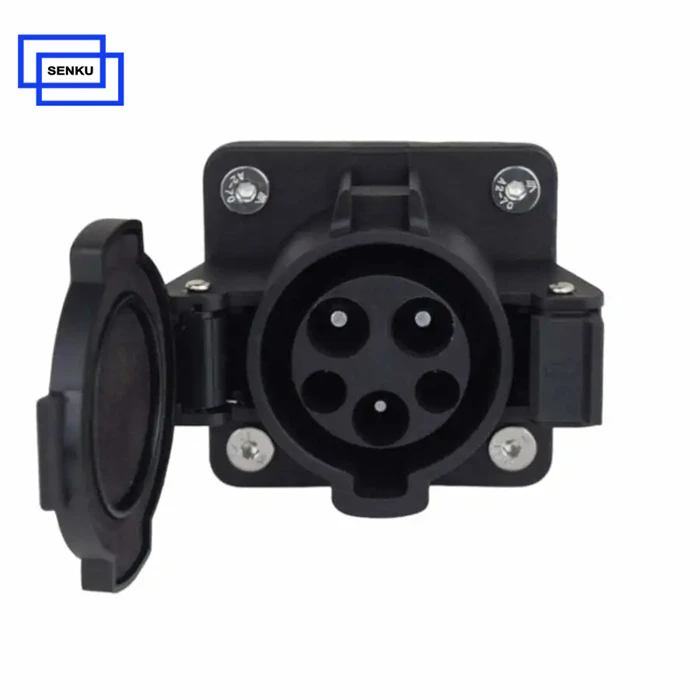

16A 32A 40A 50A Hom 1 Fais Tsheb Charging Socket

Khoom nta

- Hom 1 hluav taws xob tsheb them lub qhov (socket).ntsib SAE J1772 rau kev them nqi hluav taws xob tsheb (UL 2251-Plugs, Receptacles, thiab Couplers for Electric Vehicles).

- J1772 inlet nrog lub compact sab nraud qhov ntev thiab ntsia hlau-kev sib txuas tsim.

- IP54 tiv thaiv qib, muaj zog thiab zoo.

Daim ntawv thov:

j1772 uaHom 1 hluav taws xob tsheb them lub qhov (socket).yog lub tsheb zoo tshaj plaws sab kev daws teeb meem uas muab kev tiv thaiv IP siab thiab MIN ntawm 10000 cycles mechanical life . Nws muaj nyob rau ib theem them cov tshuab thiab muaj qhov ntsuas tam sim no txog 50A.

Cov txheej txheem dav dav ntawm ntau hom kev sib txuas

Qhov ceev ntawm lub tsheb hluav taws xob (EV) tsub nqi siv AC lub zog yog cuam tshuam los ntawm peb yam tseem ceeb: lub chaw them nyiaj uas muab hluav taws xob, lub charger cable, thiab lub tsheb charger onboard.

J1772 - Hom 1

Hauv xyoo 2001, California tau qhia txog qhov sib txuas ua ke hu ua J1772, uas tau txwv rau 6.6 kW ntawm lub zog. Hauv kev teb rau qhov xav tau kom them sai dua, Yazaki tau tsim lub zog ntau dua hauv xyoo 2008, muaj peev xwm xa 19.2 kW. Txij li xyoo 2010, qhov kev tsim kho tshiab no tau dhau los ua tus qauv rau txhua lub tsheb Asmeskas thiab feem ntau hu ua J-plug lossis Hom 1 connector.

Thaum xub thawj, cov tsheb hluav taws xob nyob sab Europe kuj tau siv cov khoom sib txuas no, yog li ntau tus qauv qub lossis hybrid tseem muaj hom 1. Txawm li cas los xij, txij li cov tsav tsheb EV feem ntau nqa lawv tus kheej them cables, them nyiaj ntawm txhua qhov chaw nres tsheb AC tseem yooj yim. Niaj hnub no, Hom 1 feem ntau yog siv hauv North America thiab Asia. Ib qho tseem ceeb drawback ntawm no connector yog hais tias nws txhawb tsuas yog ib-theem them thiab tsis muaj ib tug integrated automatic xauv mechanism.

Mennekes - Hom 2

Cov tsheb hluav taws xob nyob sab Europe thaum chiv thawj siv hom 1 txuas mus txog rau thaum European automakers nrhiav kev daws teeb meem uas tuaj yeem siv tau tag nrho peb theem ntawm lub zog. Qhov no ua rau kev tsim cov kev qhia tshiab raws li IEC 62196 hauv xyoo 2003, uas ua rau muaj kev txhim kho ntawm Hom 2 "Mennekes" connector. Nws tau dhau los ua tus qauv thoob plaws Tebchaws Europe. Qhov kom zoo dua ntawm ob hom 1 thiab Hom 2 connectors siv tib J1772 signaling raws tu qauv yog tias cov tuam ntxhab tuaj yeem tsim cov tsheb sib xws thiab tsuas yog nruab qhov tsim nyog plug hom rau lub khw tshwj xeeb ntawm theem kawg ntawm kev tsim khoom. Tsis tas li ntawd, passive adapters muaj nyob nruab nrab ntawm cov hom no. Lwm qhov txiaj ntsig tseem ceeb ntawm Hom 2 connector yog nws lub kaw lus tsis siv neeg kaw.

(Lub hom 2 connector feem ntau hu ua Mennekes, muaj npe tom qab lub tuam txhab German uas tsim nws. Lo lus "Mennekes tsim" tau dhau los ua neeg paub ntau.)

Tesla Model S thiab Model X muag hauv Tebchaws Europe kuj tseem muaj qhov hloov kho me ntsis Hom 2 txuas. Qhov no tso cai rau lawv them nyiaj ntawm txhua qhov chaw nres tsheb AC thiab siv Tesla Supercharger network rau DC them ceev ceev.

GB / T Txuj

Nyob rau hauv Suav teb, GB / T connector tau tsim nyob rau hauv kev taw qhia ntawm Guobiao Standardization Commission thiab tam sim no tus tib connector siv nyob rau hauv lub teb chaws. Qhov tsis muaj kev sib tw connector hom simplifies lub expansion ntawm lub charging infrastructure. Tuam Tshoj tam sim no khav theeb lub network ceev tshaj plaws ntawm cov chaw them nqi thoob ntiaj teb thiab cov tsheb hluav taws xob ntau tshaj plaws ntawm txoj kev.

Thaum xub thawj siab ib muag, lub GB / T connector zoo ib yam li hom 2, tab sis cov xov hlau sab hauv yog teem nyob rau hauv kev txiav txim rov qab, rendering ob connectors incompatible.
