SAE J1772-2009, lub npe hu ua "Type 1" connector, tseem yog lub hauv paus ntawm lub tsheb fais fab tam sim no (EV) charging infrastructure. Cov qauv no feem ntau yog siv rau Theem 1 thiab Theem 2 them, uas yog hom kev them nyiaj ntau tshaj plaws rau cov chaw nyob thiab kev lag luam.

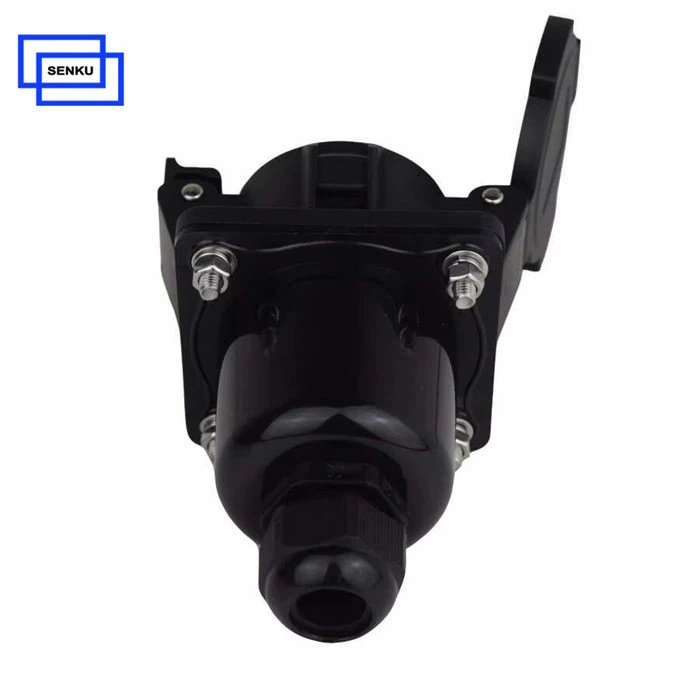

Qhov no50A J1772 Fais Tsheb Inlet Socketyog dav sib xws nrog ntau yam tshiab zog tsheb. Nws yog ib qho yooj yim rau siv thiab ua kom muaj kev sib raug zoo nrog koj lub tsheb fais fab, ua rau nws yooj yim xaiv rau txhua tus tswv tsheb hluav taws xob.
![89LQK0T6{5_8H40YY]Y5QZY.jpg](/uploads/32743/products/p2024082917432113c07.jpg?size=700x0 "89LQK0T6{5_8H40YY]Y5QZY.jpg")
Pin Configuration thiab Functions:
Pin 1 (Line 1 -} L1): Xa lub ntsiab voltage rau EV lub onboard charger, hloov AC fais fab mus rau DC lub zog tsim nyog rau them lub roj teeb.
Pin 2 (Neutral - N): Ua kom tiav AC Circuit Court, yooj yim rau kev xa rov qab tam sim no mus rau lub zog hluav taws xob.
Pin 3 (Protective Earth - PE): Muab cov av hauv av thaum lub sij hawm them nyiaj, ua kom muaj kev nyab xeeb los ntawm kev tiv thaiv hluav taws xob.
Pin 4 (Kev Sib Txuas Pilot - PP): Ua raws li kev sib txuas lus sib txuas ntawm EV thiab lub chaw them nyiaj, xa lub tsheb lub peev xwm them nqi los pib txheej txheem.
Pin 5 (Control Pilot - CP): Tswj thiab tswj cov txheej txheem them nyiaj los ntawm kev sib txuas lus ob-txoj kev, tso cai rau EV thov qee qhov tam sim no thiab qhov hluav taws xob thiab tau txais cov xwm txheej hloov tshiab los ntawm chaw nres tsheb.
Cov50A J1772 Fais Tsheb Inlet Sockettau tsim nruj kom ua raws li CE, TUV, thiab SAE J1772 cov cai tswj kev nyab xeeb, muab kev nyab xeeb them nyiaj yam tsis muaj kev cuam tshuam txog kev nyab xeeb. Lub qhov (socket) no muaj qhov ua haujlwm ntawm 240V thiab qhov ntsuas tam sim no ntawm 16A lossis 32A lossis 50A. Nws muaj UL94-V-0 nplaim retardant ntsuam xyuas, kom ntseeg tau ib tug txhim khu kev qha thiab npaum txheej txheem them.
Wide compatibility.
Tus tsim ntawm lub50A J1772 Fais Tsheb Inlet Sockethais txog kev tsim qauv, nrog kev tiv thaiv qib IP54. Qhov no ua kom ntseeg tau tias cov khoom sib txuas ua haujlwm muaj kev ntseeg siab hauv ntau qhov chaw, muab kev ntseeg siab rau nwskev ua haujlwm.Thiab lub qhov (socket) yog nruab nrog TPE sheath, uas muaj cov rwb thaiv tsev zoo, kev laus ua haujlwm thiab ua haujlwm ntev. Qhov no ua kom lub neej ntev hnav tsis kam thiab yoog raws.
