Technical Specification
|
Hluav taws xob Performance. |
||
|
Rated tam sim no / Voltage |
250A 1000V DC |
|
|
Neeg kho tshuab lub neej |
tsis muaj ntsaws ntsaws rau hauv / ntsaws tawm> 10000 zaug |
|
|
Khoom siv |
Thermoplastic, nplaim retardant qib UL 94-0 |
|
|
Pin |
Cooper alloy, Sliver plated |
|
|
Kev ua haujlwm Temp. |
-30 degree ~ + 50 degree |
|
|
IP tiv thaiv chav kawm |
IP55 (kev ua haujlwm) |
|
|
Qauv |
Cable Specific |
Cable Ntev |
|
SENKU IEC-3-IVc-250A |
2 * 70 + 1* 25 + 6* 0.75 mm² (TPE / TPU) |
Customized |

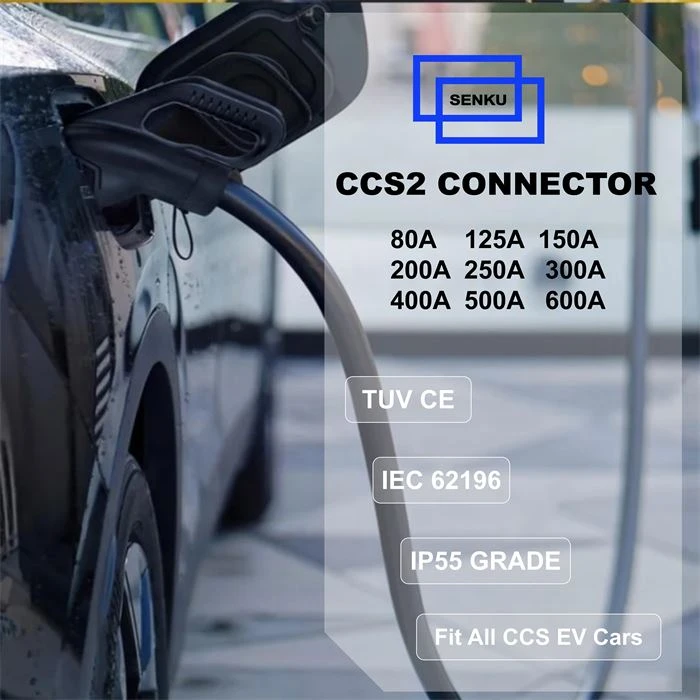

Rau cov teb chaws Europe thiab Asia feem ntau, lub tsheb fais fab them nyiaj hloov CCS2 connectors. Nws yog ib hom Combined Charging System (CCS) rau 1000V DC ceev them. SENKU IEC-3-IVc-250A 250A DC Car Charging CCS2 Plug tuaj yeem them tag nrho cov tsheb hluav taws xob uas muaj CCS2 lub qhov hluav taws xob.
Kev xa khoom kuaj txheej txheem ntawm Lub Tsheb Them CCS2 Plug
|
Kev tshuaj xyuas qhov tshwm sim Xyuas cov ntawv luam tawm ntawm 250A DC Car Charge CCS2 Plug, xyuas kom meej tias lub logo, qauv thiab lwm yam ntaub ntawv zoo ib yam nrog cov duab kos. |
||
|
Cov khoom |
Txuj |
Test Machine/Tooling |
|
Cov ntsiab lus luam tawm |
Kev kos duab / Cov neeg siv khoom thov |
Pom kev |
|
Lub zog Cable Xim |
DC+=Red, DC-=Dub |
Pom kev |
|
PE Cable Xim |
Ntsuab + Daj |
Pom kev |
|
Teeb liab Cable Xim |
CP=White |
Pom kev |
|
PT1000 Cable Xim |
T1=xim av, T2=Grey, T3=Blue, T4=Purple |
Pom kev |
|
Dimension soj ntsuam Tshawb xyuas lub qhov hluav taws xob cable ntev, stripping cable ntev thiab kab inch kom paub meej tias lawv ua tau raws li qhov yuav tsum tau ua. |
||
|
Cov khoom |
Txuj |
Test Machine/Tooling |
|
Zuag qhia tag nrho txoj kab uas hla |
Ua raws li daim duab thov |
Txoj cai hlau |
|
Xaus Cable Stripping Length (T1, T4, PP, CP, DC + DC-PE) |
Ua raws li daim duab thov |
Txoj cai hlau |
|
Qhov hluav taws xob Cable Length |
Ua raws li daim duab thov |
Daim kab xev |
|
Terminal Pull Force test Kho cov kab hluav taws xob thiab lub davhlau ya nyob twg ntawm lub tshuab ntsuas quab yuam, thiab tom qab ntawd lub tshuab yuav siv zog txuas ntxiv mus sim cais lub davhlau ya nyob twg thiab cable. Rau 70mm², thr ntau lawm yuav tsum xyuas kom meej tias cov cable yuav tsis rub tawm ntawm lub davhlau ya nyob twg nyob rau hauv 2700N nro. |
||
|
Cov khoom |
Txuj |
Test Machine/Tooling |
|
70mm² cable rub quab yuam |
Ntau dua lossis sib npaug rau 2700N |
Lub zog ntsuas |
|
35mm² cable rub quab yuam |
Ntau tshaj lossis sib npaug rau 2200N |
Lub zog ntsuas |
|
0.75mm² cable rub quab yuam |
Ntau dua lossis sib npaug rau 80N |
Lub zog ntsuas |
|
Temperature Rise Test Tuav qhov tam sim no ntawm 250A ntawm DC + thiab DC - cov davhlau ya nyob twg rau 1-2 teev, saib xyuas qhov ntsuas kub ntawm CCS2 ntsaws, thiab tom qab ntawd xyuas seb qhov ntsuas kub ntawm 250A DC Car Charge CCS2 Plug davhlau ya nyob twg yog tsawg dua 50K ; Yog qhov kub nce<50K, it means that the Combo CCS2 EVSE plug can be safely used for continuous charging with 250A current |
||
|
Cov khoom |
Txuj |
Test Machine/Tooling |
|
Rated Tam sim no |
250A |
Kub nce siab ntsuas tshuab |
|
Kub nce |
<50K |
Kub nce siab ntsuas tshuab |
|
Kev Ntsuas Hluav Taws Xob Tshawb xyuas qhov txuas ntxiv, qhov hluav taws xob thiab qhov tsis kam ntawm lub ntsaws ntsaws kom ntseeg tau tias tsis muaj cable lossis lub davhlau ya nyob twg poob thaum lub sijhawm sib dhos thiab lub ntsaws ntsaws muaj kev ua haujlwm zoo |
||
|
Cov khoom |
Txuj |
Test Machine/Tooling |
|
Rated Voltage |
1000VDC |
Comprehensive tester |
|
Rwb thaiv tsev Resistance |
＞1000MΩ |
|
|
Tiv tauj Impedance |
0.5mΩ |
|
|
Nrog Voltage |
3000V |
|
|
RC Resistance |
1500Ω ± 1% |
|
Kev ua lag luam yog qhov zoo tshaj plaws los kuaj qhov zoo. Ob peb xyoos dhau los, cov neeg siv khoom hauv ntau lub tebchaws hauv Tebchaws Europe tau txuas ntxiv siv peb SENKU IEC-3-IVc series DC Car Charge CCS2 Plug. Cov neeg siv khoom sib koom ua ke tawm tswv yim tias qhov no yog cov khoom lag luam raug nqi thiab txhim khu kev qha. Xav paub ntau ntxiv hais txog qhov no COMBO CCS2 hluav taws xob tsheb them plugs thov hu rau pebpab neeg muag khoom, Ua tsaug!
Dab tsi yog cov khoom siv cable?
Lub 250A DC Tsheb Them CCS2 Plug cable conductor yog siab-precision oxygen dawb ntshiab tooj liab, thiab lub plhaub sab nraud ntawm lub cable yog ua los ntawm cov khoom siv TPU;
Lub high-precision oxygen dawb ntshiab tooj liab hlau tub ntxhais muaj qhov tsis tshua muaj zog, ua rau nws yooj yim rau tam sim no kom dhau los thiab ua tau zoo txo cov hlau tsis zoo, txhim kho kev sib kis hluav taws xob. Cov khoom siv TPU cable sheath khoom yog ib puag ncig tus phooj ywg thiab muaj kev hnav zoo, huab cua tsis kam, UV tsis kam, thiab nplaim hluav taws zoo.
