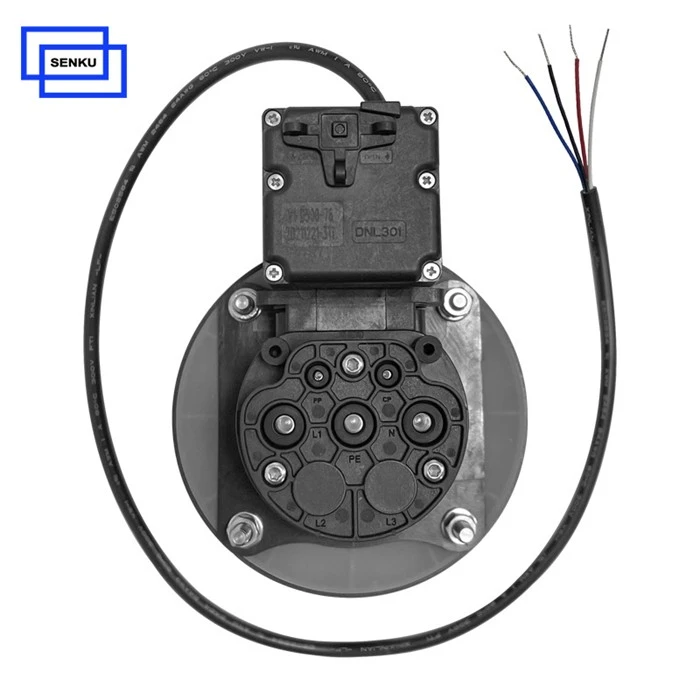

Covhom 2 EV charger connector socketyog tsim los siv cov khoom zoo tshaj plaws los xyuas kom meej thiab ruaj ntseg. Lub plhaub yog ua los ntawm cov khoom siv thermoplastic PC + PA66 nrog cov nplaim hluav taws kub ntawm UL94V-0, muab hluav taws kub zoo heev.
Cov raj sib txuas yog tsim los ntawm H62 tooj liab alloy nrog nyiaj plating, muab superior conductivity thiab tiv thaiv corrosion. Sealing Cheebtsam yog tsim los ntawm cov roj hmab thiab silicone, kom ntseeg tau tias muaj kev sib txuas nruj thiab ruaj ntseg uas tiv taus ntau yam ib puag ncig.
Case Study:Hauv ib lub nroog ntug dej hiav txwv hauv Spain, qhov chaw muaj av noo thiab huab cua ntsev ntau, Hom 2 Charging Station Sockets tau teeb tsa ntawm cov chaw nres tsheb pej xeem. Txawm hais tias ib puag ncig hnyav, cov sockets tau pom tias tsis muaj cov tsos mob ntawm corrosion los yog degradation tom qab peb xyoos ntawm kev siv tas mus li, ua tau zoo dua qub qauv siv nyob rau hauv tib qhov chaw.
Daim ntawv thov
Xaiv rau lubhom 2 EV charger connector socketnyob rau hauv koj lub EV charging infrastructure los muab cov neeg tsav tsheb nrog kev sib txuas ntawm kev ntseeg siab uas ua kom muaj kev xa hluav taws xob zoo ib yam, kev nyab xeeb siab tshaj plaws los ntawm kev rwb thaiv tsev thiab kev tiv thaiv hluav taws xob, thiab lub sijhawm them nyiaj tau zoo, txawm tias lawv nyob hauv tsev, hauv chaw nres tsheb lag luam, lossis ntawm kev them nyiaj rau pej xeem. chaw nres tsheb. Qhov nohom 2 qhov (socket).yog tsim los tswj kev siv txhua hnub hauv ntau qhov chaw, muab cov neeg siv kev thaj yeeb nyab xeeb txhua lub sijhawm lawv ntsaws rau hauv lawv lub tsheb.
Xyoo ntawm kev tsim khoom
Nrog rau ntau tshaj 12 xyoo ntawm kev lag luam kev lag luam, peb muaj kev paub ntau hauv kev tsim cov khoom xws li hluav taws xob tsheb txuas thiab hluav taws xob tsheb them chaw nres tsheb. Peb lub Hoobkas tau nruab nrog cov tshuab siab heev, thiab peb tswj hwm kev tswj hwm nruj ntawm txhua theem ntawm kev tsim khoom.
Peb pab pawg yog tsim los ntawm cov kws tshaj lij engineers thiab cov kws tshaj lij uas yog cov kws tshaj lij hauv lawv cov haujlwm. Qhov kev paub txog kev ua haujlwm no pab peb tsim cov khoom lag luam uas tsis yog tsuas yog kev ua haujlwm siab, tab sis kuj muaj lub tswv yim tshiab thiab saib mus tom ntej.
Peb lub Hoobkas tau dhau ISO 9001, ISO 14001, thiab CE daim ntawv pov thawj, yog li koj tuaj yeem ntseeg peb cov khoom zoo.
Peb tau cog lus rau kev txhim kho kom ruaj khov, siv cov txheej txheem txuag hluav taws xob thiab cov khoom siv ib puag ncig kom ntau li ntau tau.
Cim npe nrov: hom 2 ev charger connector socket, hom 2 ev charger connector socket lwm tus neeg, manufacturers, hoobkas
|
Hluav taws xob Performance. |
||
|
Rated tam sim no |
16A lossis 32A lossis 50A lossis 63A xaiv tau |
|
|
Kev ua haujlwm voltage |
250VAC lossis 480VAC yeem |
|
|
Neeg kho tshuab lub neej |
tsis muaj ntsaws ntsaws rau hauv / ntsaws tawm> 10000 zaug |
|
|
Coupled insertion quab yuam |
<100N |
|
|
Kev cuam tshuam ntawm lub zog sab nraud |
tuaj yeem them taus 1m poob kev sim thiab 2T lub tsheb khiav dhau lub siab |
|
|
Case Material |
Thermoplastic, nplaim retardant qib UL 94-0 |
|
|
Pin |
Cooper alloy, Sliver plated |
|
|
Kev ua haujlwm Temp. |
-30 degree ~ + 50 degree |
|
|
IP tiv thaiv chav kawm |
IP54 (kev ua haujlwm) |
|
|
Qauv |
Cable Specific |
Cable Ntev |
|
16A / 250VAC |
3 * 2.5 mm² + 2 * 0.5 mm² |
Tsis muaj kab |
|
16A / 480VAC tso zis |
5 * 2.5 mm² + 2 * 0.5 mm² |
|
|
32A / 250VAC |
3 * 6 mm² + 2 * 0.5 mm² |
|
|
32A / 480VAC tso zis |
5 * 6 mm² + 2 * 0.5 mm² |
|
|
50A / 250VAC |
Loj: 3 * 1 * 0.5 mm² |
|
|
50A / 480VAC |
5 * 1 (3) mm² +2 * 0.5 mm² |
|
|
63A / 250VAC |
3 * 16 mm² +2 * 0.5 mm² |
|
|
63A / 480VAC Cov |
5 * 16 mm² +2 * 0.5 mm² |
|
