Basic Qhia

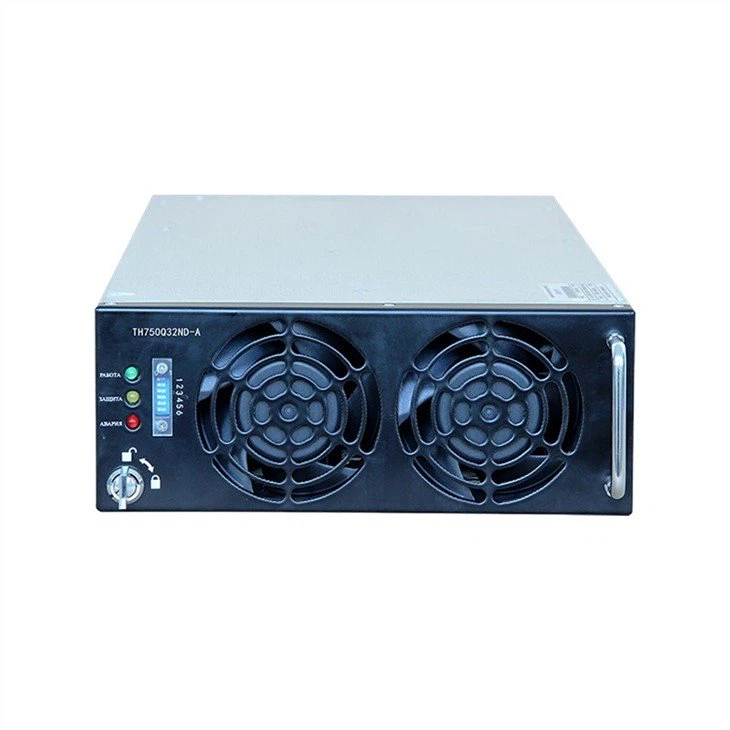

TH750Q32ND-A/800DC EV DC charger fais fab module yog lub zog txuag thiab siab zog dual AC / DC input khoom rau lub tsheb fais fab chaw nres tsheb.
Qhov no EV DC charger fais fab module txhawb 266V AC - 494V AC voltage input, max zog 30KW thiab lub hwj chim module nrog MAX zog 20KW thaum 400V DC-860V DC voltage input. AC DC / DC DC fais fab mov module sib txuas lus nrog lub tsheb fais fab chaw nres tsheb fais fab los ntawm CAN tsheb npav.
Khoom nta
- AC / DC Dual Input EV Charger Module ua haujlwm voltage: 266 ~ 494V / AC lossis 400-860V / DC
- Lub EV charger fais fab module tso zis voltage ntau: 200 ~ 750V DC
- Standby zog noj: <10W
- Lub EV charger fais fab module ua haujlwm kub: -20 ~ +75 degree
- Txhawb nqa kev sib txuas hluav taws xob thiab kev tswj hwm tam sim no
- EAC ntawv pov thawj
Daim ntawv thov:
Lub AC / DC Dual Input EV Charger Module nrog lub zog loj tas li ntawm 150V txog 1000V DC yog siv rau ntawm CCS2 CHAdeMo GBT CHAOJI EV Supercharger chaw nres tsheb
Technical Specification
|
AC input Kev ntsuas hluav taws xob |
Input voltage (AC) |
266 ~ 494V AC; 3-theem + PE, ntsuas voltage 380V AC |
|
Max tso zis tam sim no |
50A |
|
|
Tso zis tsis tu ncua |
750V ~ 600V DC; 30 KW 400 ~ 500V DC; Ntau tshaj lossis sib npaug li 20KW |
|
|
Ntau zaus |
45Hz - 55Hz (rau AC input) |
|
|
THD |
Tsawg dua lossis sib npaug li 5% (Ntau tshaj 50% load) |
|
|
Hwj chim Factor |
Ntau dua lossis sib npaug rau 0.99 (Tag nrho Load; Nyob rau hauv rooj plaub ntawm AC input) |
|
|
DC input Kev ntsuas hluav taws xob |
Input voltage (DC) |
400-860V DC (20KW ntawm 600-800V DC input) |
|
Max tso zis tam sim no |
33A |
|
|
Tso zis tsis tu ncua |
606V ~ 750V DC; 20 KW |
|
|
Lwm Cov Kev Ntsuas Hluav Taws Xob |
Kev ua tau zoo |
>95% (tag nrho Load) |
|
Voltage stabilization Qhov tseeb |
Tsawg dua lossis sib npaug rau ±0.5% |
|
|
Tam sim no stabilization Qhov tseeb |
Tsawg dua lossis sib npaug ± 1% (20% txog 100% load) |
|
|
Soft Start Sijhawm |
3 ~ 8S |
|
|
HMI |
LED Teeb |
YOG ( qhia lub xeev ua haujlwm) |
|
Ua haujlwm tuav |
YOG |
|
|
Yam khoom |
Connectors thiab Cables |
|
|
Kev sib txuas lus |
raws tu qauv |
YOG |
|
Environmental Rating |
IP tiv thaiv qib |
IP20 |
|
Ua haujlwm kub |
Ua haujlwm kub: -20 ~ 50 degree (Ntau dua lossis sib npaug li 55 degree nrog kev txwv lub zog tso zis) |
|
|
Cia Kub |
Cia kub: -40 ~ 75 degree |
|
|
EV Charging Rectifier Txoj kev txias |
Ntxuam cua txias |
|
|
Kev tiv thaiv |
Hluav taws xob tsheb fais fab Kev tiv thaiv chaw nres tsheb |
Tawm tswv yim dhau-voltage, tiv thaiv under-voltage, input over-tam sim no kev tiv thaiv, theem-tso tiv thaiv Output over-voltage tiv thaiv thiab tiv thaiv kev txwv tam sim no Output back-flow tiv thaiv Environmental Temperature Detection thiab Tiv Thaiv Pob ntawv tam sim no sib koom ua haujlwm |
|
Ua raws |
Ua raws li |
Tsim raws li cov qauv CE; Khoom EAC ntawv pov thawj |
Cov yam ntxwv tiv thaiv
|
Yam khoom |
Parameters |
Remakrs |
|
Input Over-voltage tiv thaiv point (AC) |
495~514 |
|
|
Input Over-voltage rov qab point (AC) |
470~488 |
|
|
Input Under-voltage tiv thaiv point (AC) |
242~265 |
|
|
Input under-voltage rov qab point (AC) |
272~296 |
|
|
Input Over-voltage tiv thaiv point (DC) |
880 |
|
|
Input Over-voltage rov qab point (DC) |
870 |
|
|
Input Under-voltage tiv thaiv point (DC) |
350 |
|
|
Input under-voltage rov qab point (DC) |
370 |
|
|
Fan txhaum |
Ntxuam fault shutdown |
|
|
Input theem poob kev tiv thaiv |
Phase poob kaw |
|
|
Output luv-circuit tiv thaiv |
Nruab |
|
|
Tso zis tshaj voltage tiv thaiv |
Nruab |
Nruab nrog kho vajtse thiab software dual overvoltage kev tiv thaiv. Tom qab overvoltage, kaw thiab kaw. Yuav tsum rov- lub zog tuaj yeem rov qab los. |
